The Way for Ultra-high Definition Encoding&Decoding

The 10K115 & 10K215 UHD series processors are new generation of high-quality broadcast encoding and decoding products that support 4K & 8K video processing.

Using advanced video processing techniques to realize excellent video processing quality.

MBX100

•  FPGA based structure
•  Modular design. Support maximum 4 functional cards
•  Integrate encoding, decoding, and IP gateway in one device
•  Maximum 1 x 8K/4 x 4K/16 HD encoding/decoding
•  Support SMPTE-2110/2022-6, JPEG-XS
•  Support SRT, RIST, CSF^TM
•  Support ultra-low latency work mode
•  Support NMOS

fOR DETAILS

10K115

•  1 x 4K or 4 x HD services per chassis
•  Video Encoding: HEVC / H.264
•  2160p UHD and 1080p HD, 4:2:2, 8-bit 10-bit
•  Up to 16 audio channels per service
•  Low Latency: lower than 100ms (1 service)
•  WCG: BT.709/BT.2020*
•  HDR: SMPTE2084, HLG, HDR10
•  Support SMPTE ST2022-6, SMPTE ST2110

fOR DETAILS

10K115-8K

•  Video formats: H.265 Main/Main10 profile@level5.1
•  7680*4320@50, 60 fps, 4:2:2,8,10 bit
   GOP structure: Length:1-384
•  B frame number:0, 1, 2, 7
•  IDR frame frequency: 1-15
•  12G-SDI/ 3G-SDI(BNC)
•  SFP GbE outputs/ BNC ASI outputs
•  Control: RJ45

fOR DETAILS

10K215

•  CPU+ASIC-based structure
•  H265/H.264/MPEG2/AVS+ video decoding(3840x2160@60P)
•  Audio format: Mpeg-2 / AAC/ AC3/ DRA
•  Support UDP-TS re-transmission
•  4×12G/3G/HD SDI
•  output 1 * UHD
•  2 * Gbe & 2 * 10Gbe
•  Support SRT, RIST, RTP, UDP

fOR DETAILS

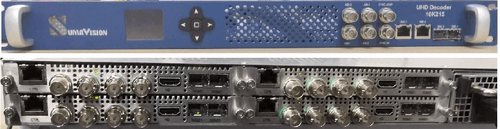

10K215-8K

•  FPGA based structure
•  H.265 Main/Main10 profile@level5.1 high-tier
•  7680*4320,4:2:0@50, 60 fps
•  DolbyDigital/Dolby Digital Plus/Dolby True HD/HE-AAC AAC-LC, MPEG L1/L2
•  12G-SDI
•  4×2 ×SFP GbE
•  Control: RJ45 GbE

fOR DETAILS
